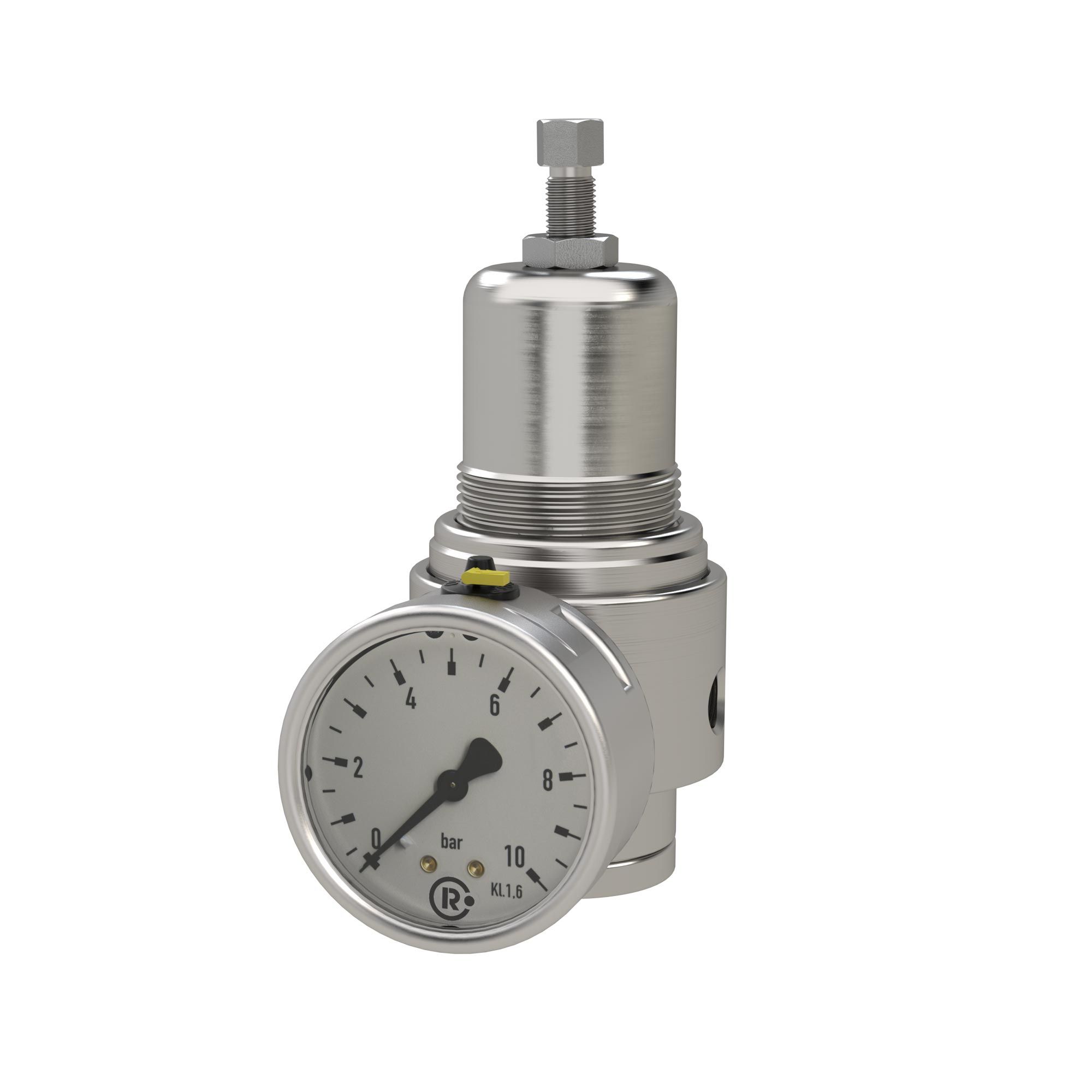

Stainless steel pressure regulator, 1.4404, with secondary venting (reversible), G 1/4, Control range 0.5 - 8 bar
Stainless steel regulators containing no non-ferrous metals for use in the food processing, chemical, mining,
plant construction and special machinery industries as well as in the medical technology.
Article No.:101191
Type No.:570.14B
Thread:1/4 G
Max. input pressure: 30 bar
Housing:Stainless steel 1.4404 (AISI 316L)
Sealant: FKM
Diaphragms: PTFE on NBR-carrier
Min. medium temperature: -20 °C
Max. medium temperature: 80 °C
Min. ambient temperature: -20 °C
Max. ambient temperature: 80 °C
Flow rate: 1300 l/min
Min. control range: 0,5 bar
Max. control range: 8 bar
A: 64,0 mm
B: 160,0 mm
C: 37,0 mm
Flow rate measurement: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar
Country of origin: DE
Customs tariff number: 84811019
Klassenname:STAINLESS STEEL
Page No.:HK191
