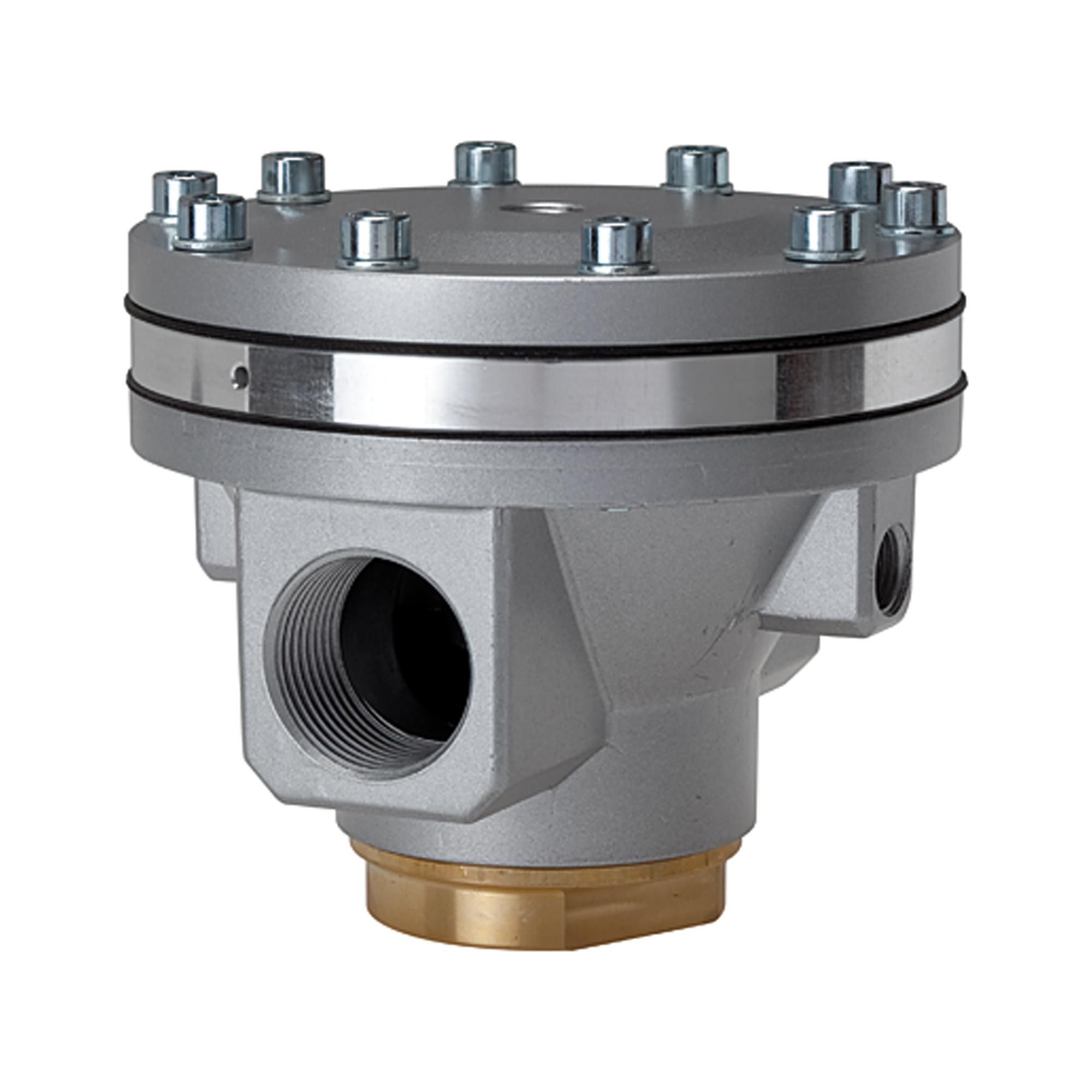

Pressure regulator pneumatic remote controlled »Standard«, without pressure gauge, G 1/2, Input pressure max. 25 bar, max. 60 °C
Diaphragm pressure regulators, self-relieving, with pneumatic remote control.
The full functionality is assured in combination with a pilot regulator.
We recommend using one of our precision or standard pressure regulators with a G 1/4 port as the pilot regulator.
The output pressure corresponds to the set pressure of the pilot pressure regulator.
To design a closed control loop similar to the sketch below please use our precision pilot regulator (feedback).
Article No.: 101252
Type No.: 637.301
Thread: G 1/2
Max. input pressure: 25 bar
Housing: Die-cast zinc
Sealant: NBR
Min. medium temperature: -10 °C
Max. medium temperature: 60 °C
Min. ambient temperature: -10 °C
Max. ambient temperature: 60 °C
Flow rate: 5800 l/min
A: 82,0 mm
B: 74,0 mm
Series: Standard
Flow rate measurement: At P1 = 8 bar, P2 = 6 bar and pressure drop ∆p = 1 bar
Country of origin: EU
Customs tariff number: 84811099
REACH SVHC1 substance name: Lead
CAS no. SVHC 1: 7439-92-1
RoHS materials notice: RoHS compliant
REACH Info: contains SVHC substance
Klassenname: FLEX
Port for pneumatic remote control: 1/4 G
Page No.: HK151
