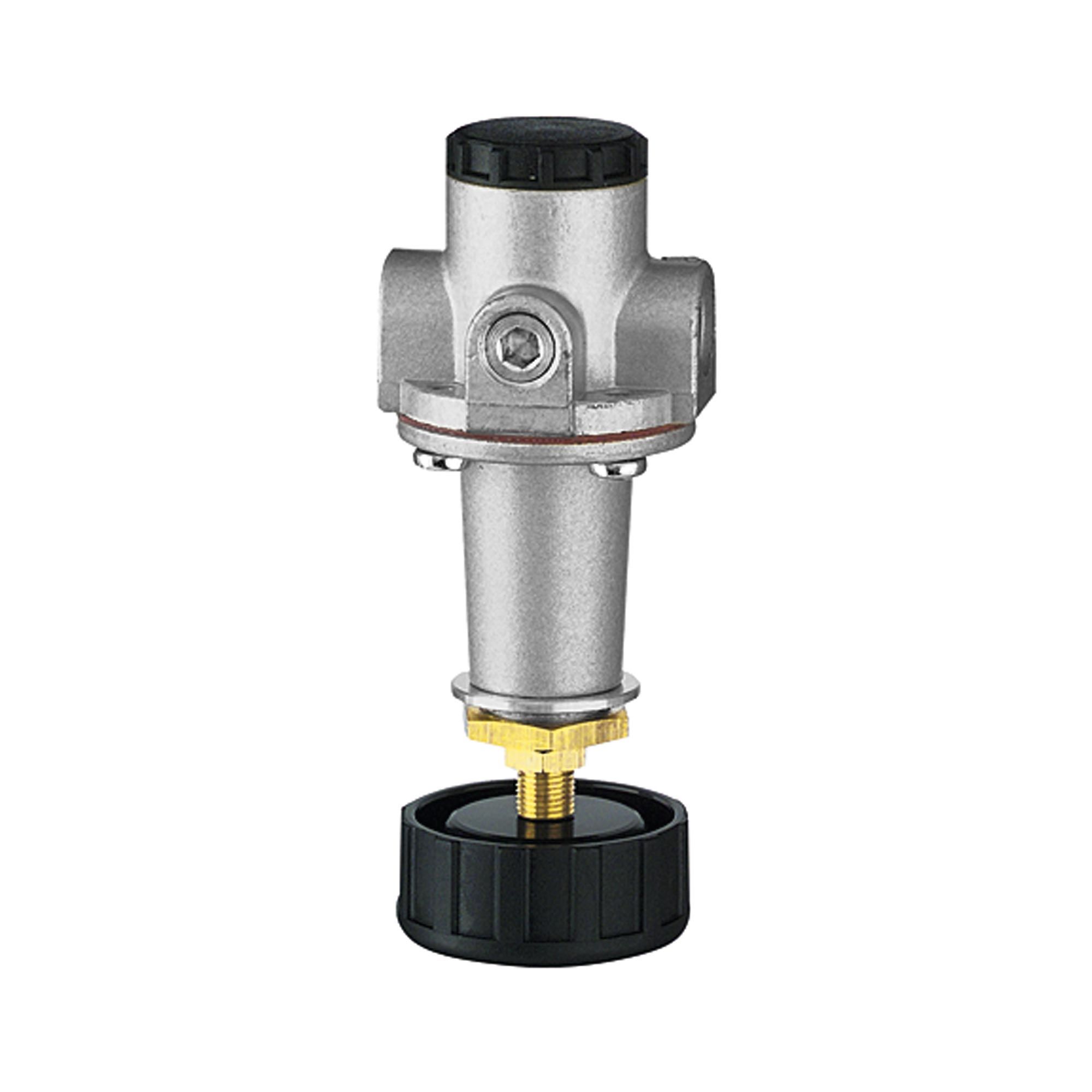

Pressure regulator for control panel integration »Standard«, without pressure gauge, Size 1, G 1/4, max. 16 bar, 0.5 - 3 bar
Incl. panel nut and washer.
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
Article No.: 100849
Type No.: 637.503A
Thread: 1/4 G
Size: 1
Max. input pressure: 16 bar
Housing: Die-cast zinc, painted silver
Sealant: NBR
Min. medium temperature: -10 °C
Max. medium temperature: 60 °C
Min. ambient temperature: -10 °C
Max. ambient temperature: 60 °C
Flow rate: 1000 l/min
Min. control range: 0,5 bar
Max. control range: 3 bar
DN: 6
A: 54,0 mm
C: 32,0 mm
D: 97,5 mm
Seri: Standard
Flow rate measurement: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Country of origin: DE
Customs tariff number: 84811099
REACH SVHC1 substance name: Lead
CAS no. SVHC 1: 7439-92-1
RoHS materials notice: RoHS uyumlu
REACH Info: SVHC maddesi içerir
Klassenname: KOLAY
Thread for panel mounting: M20x1,5
Page No.: HK031
