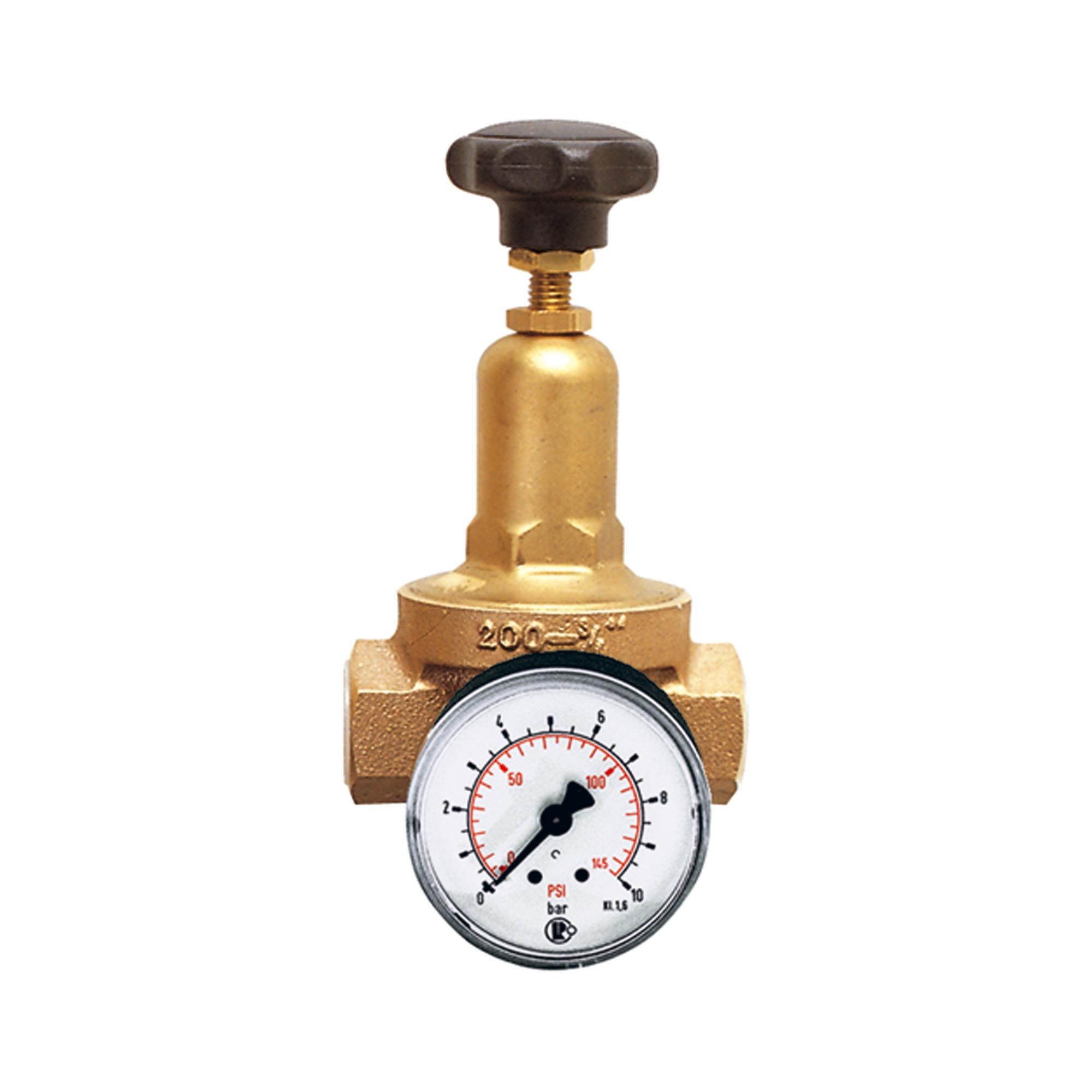

Pressure regulator DRV 200, Standard design, non-reversible, incl. pressure gauge, G 1/4, Control range 1.5 - 8 bar
Diaphragm pressure regulators with non-self-relieving design and non-pressure-reduced single-seated valve. Very precise adjustment and good response characteristic because there are only a few moving parts and hence
minimal friction.
Ideal for compressed air, nitrogen and other neutral, non-flammable gases, but only suitable for liquids with comparatively low flow rates.
Article No.: 101426
Type No.: 200.01
Max. input pressure: 25 bar
Min. temperature range: -15 °C
Max. temperature range: 100 °C
Housing: Red brass 2.1096.01
Sealant: NBR
Spring bonnet: Pressed brass
Country of origin: DE
Thread: 1/4 G
Min. control range: 1,5 bar
Max. control range: 8 bar
Flow rate kvs value: 0,5 m³/h
DN: 8
A: 70,0 mm
B: 167,0 mm
C: 120,0 mm
D: 47,0 mm
REACH SVHC1 substance name: Lead
CAS no. SVHC 1: 7439-92-1
Reduction ratio max.: 10:1
RoHS materials notice: RoHS compliant
REACH Info: contains SVHC substance
Klassenname: FLEX
Customs tariff number: 84811019
Page No.: HK172
