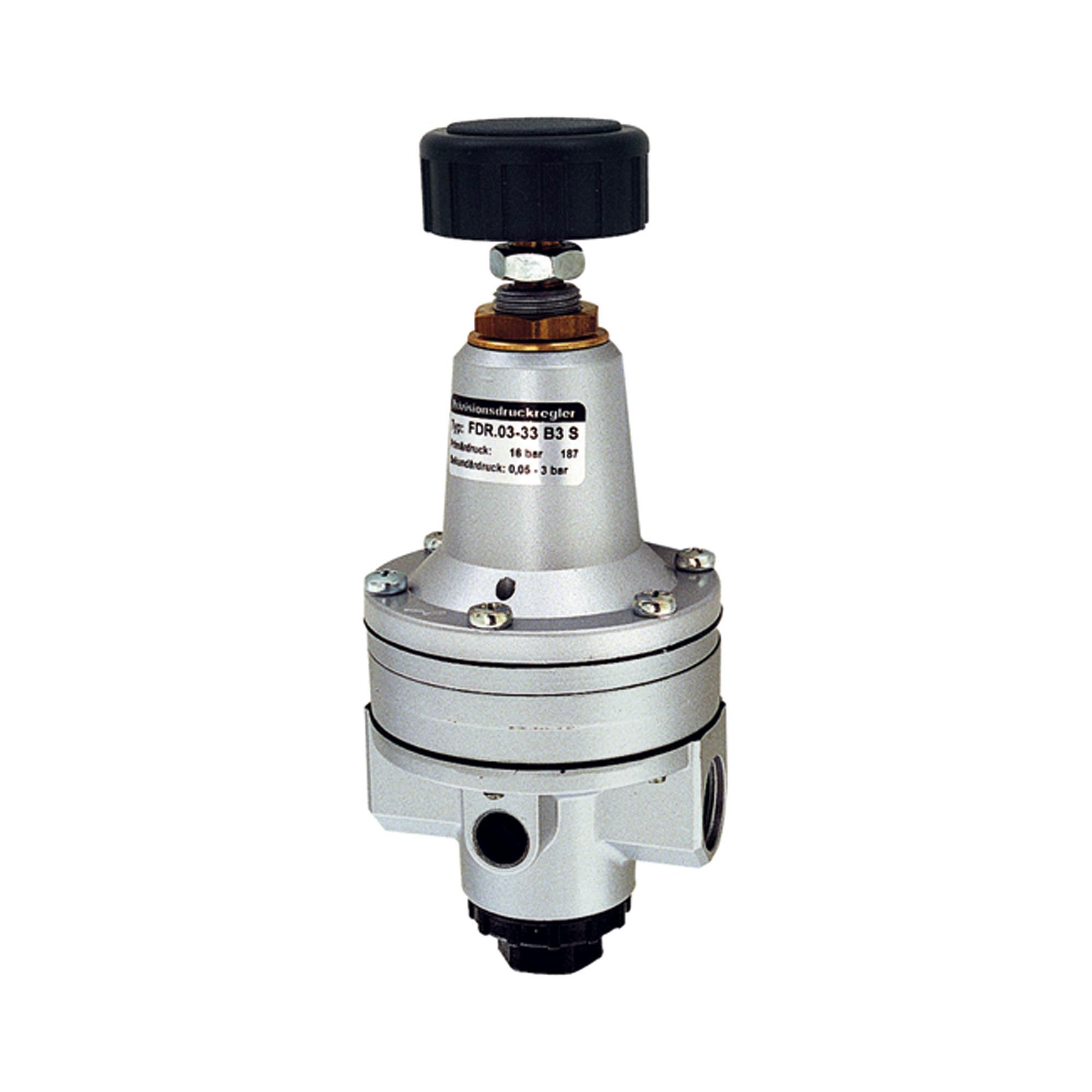

Precision pressure regulator without pressure gauge, G 1/4, Control range 0.05 - 3 bar, Input pressure max. 16 bar
With high flow rate and large secondary venting.
Diaphragm pressure regulators with large secondary venting for applications requiring an extremely accurate working pressure, especially at high flow rates.
Article No.: 101234
Type No.: 637.31
Thread: 1/4 G
Max. input pressure: 16 bar
Housing: Die-cast zinc
Sealant: NBR
air consumption: Yes
Max. internal air consumption:1.5 - 6 l/min, depending on input pressure and control range
Min. medium temperature: -35 °C
Max. medium temperature: 60 °C
Min. ambient temperature: -35 °C
Max. ambient temperature: 60 °C
Gauge port size: 1/4 G
Min. control range: 0,05 bar
Max. control range: 3 bar
A: 82,0 mm
B: 202,5 mm
C: 43,5 mm
D: 159,0 mm
Medium: Micro-filtered, unoiled compressed air (0.01 µm)
Country of origin: DE
Customs tariff number: 84811099
REACH SVHC1 substance name: Lead
CAS no. SVHC 1: 7439-92-1
RoHS materials notice:RoHS compliant
REACH Info: contains SVHC substance
Klassenname: FLEX
Vent port: G 3/8 (for mounting a silencer)
Flow rate: 700 l/min
Page No..: HK155
