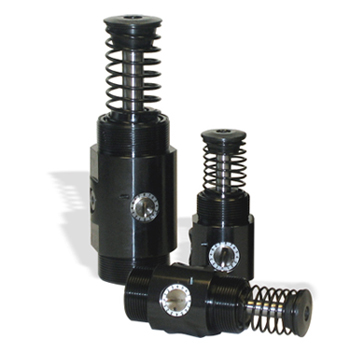

When machine or equipment input parameters change or are not clearly defined, Enidine Mid-Bore Adjustable Shock Absorbers offer a tunable solution for energy absorption and damping of shock forces. By simply turning an adjustment knob, the damping force can be easily modified to accommodate a wide range of operating conditions.
Enidine provides the industry's most comprehensive range of mid-bore adjustable industrial shock absorbers and mounting accessories available today. The Enidine OEMXT Series is offered in both imperial and metric thread configurations to meet the demands of your complex applications.
The ITT Enidine OEMXT Series is available with stroke lengths ranging from 25 mm to 150 mm, and in both inch and metric thread configurations for competitive interchangeability. The Low Rate Series (LROEMXT) is also available for controlling speeds as low as 0.08 m/s and forces up to 17,790 N. Both the OEMXT and OEM Large Series shock absorbers are fully field-repairable.
|
OEMXT Mid-Bore Adjustable Shock Absorbers |
|||||
|
SIZE |
ENIDINE DESCRIPTION |
PART NUMBER |
SIZE |
ENIDINE DESCRIPTION |
PART NUMBER |
|
OEMXT 3/4 |
AOEMXT 3/4 X 1 xtreme |
AR22180 |
OEMXT 45 |
FLANGE LOCK RING-PM 1500M |
F88637049 |
|
OEMXT 3/4 |
AOEMXT 3/4 X 2 xtreme |
AR22181 |
OEMXT 45 |
SQUARE FLANGE PM 1500 M |
M48637129 |
|
OEMXT 3/4 |
AOEMXT 3/4 X 3 xtreme |
AR22182 |
OEMXT 45 |
RECT. FLANGE PM 1500M |
M58637129 |
|
OEMXT 3/4 |
LROEMXT 3/4 X 1 xtreme |
FP22186 |
OEMXT 1 1/8 |
AOEMXT 1 1/8" X 2 xtreme |
AR22183 |
|
OEMXT 3/4 |
LROEMXT 3/4 X 1CMS xtreme |
CU22186 |
OEMXT 1 1/8 |
AOEMXT 1-1/8" X 4 xtreme |
AR22184 |
|
OEMXT 3/4 |
LROEMXT 3/4 X 2 xtreme |
FP22187 |
OEMXT 1 1/8 |
AOEMXT 1-1/8" X 6 xtreme |
AR22185 |
|
OEMXT 3/4 |
OEMXT 3/4 X 1 xtreme |
FP22180 |
OEMXT 1 1/8 |
LROEMXT 1-1/8" X 1 |
FP22188 |
|
OEMXT 3/4 |
OEMXT 3/4 X 1CM xtreme |
CJ22180 |
OEMXT 1 1/8 |
LROEMXT 1-1/8" X 2 xtreme |
FP22189 |
|
OEMXT 3/4 |
OEMXT 3/4 X 1CMS xtreme |
CU22180 |
OEMXT 1 1/8 |
OEMXT 1 1/8 X 1 |
FP9821 |
|
OEMXT 3/4 |
OEMXT 3/4 X 2 xtreme |
FP22181 |
OEMXT 1 1/8 |
OEMXT 1 1/8" X 2 xtreme |
FP22183 |
|
OEMXT 3/4 |
OEMXT 3/4 X 2CM xtreme |
CJ22181 |
OEMXT 1 1/8 |
OEMXT 1 1/8" X 2CM xtreme |
CJ22183 |
|
OEMXT 3/4 |
OEMXT 3/4 X 2CMS xtreme |
CU22181 |
OEMXT 1 1/8 |
OEMXT 1 1/8" X 2CM-S xtreme |
CU22183 |
|
OEMXT 3/4 |
OEMXT 3/4 X 3 xtreme |
FP22182 |
OEMXT 1 1/8 |
OEMXT 1 1/8" X 4 xtreme |
FP22184 |
|
OEMXT 3/4 |
OEMXT 3/4 X 3CM xtreme |
CJ22182 |
OEMXT 1 1/8 |
OEMXT 1 1/8" X 4CM xtreme |
CJ22184 |
|
OEMXT 3/4 |
OEMXT 3/4 X 3CMS xtreme |
CU22182 |
OEMXT 1 1/8 |
OEMXT 1 1/8" X 4CM-S xtreme |
CU22184 |
|
OEMXT 1.5 |
AOEMXT 1.5M X 1 xtreme |
MA22190 |
OEMXT 1 1/8 |
OEMXT 1 1/8" X 6CM xtreme |
CJ22185 |
|
OEMXT 1.5 |
AOEMXT 1.5M X 2 xtreme |
MA22191 |
OEMXT 1 1/8 |
OEMXT 1 1/8" X 6CM-S xtreme |
CU22185 |
|
OEMXT 1.5 |
AOEMXT 1.5M X 3 xtreme |
MA22192 |
OEMXT 1-1/8 |
OEMXT 1-1/8" X 6 xtreme |
FP22185 |
|
OEMXT 1.5 |
LROEMXT 1.5M X 1 xtreme |
MF22196 |
OEMXT 2.0 |
AOEMXT 2.0M X 4 xtreme |
MA22194 |
|
OEMXT 1.5 |
LROEMXT 1.5M X 2 xtreme |
MF22197 |
OEMXT 2.0 |
AOEMXT 2.0M X 6 xtreme |
MA22195 |
|
OEMXT 1.5 |
LROEMXT 1.5M X 3 xtreme |
MF22690 |
OEMXT 2.0 |
AOEM2.0M X 2 xtreme |
MA22193 |
|
OEMXT 1.5 |
OEMXT 1.5M X 1 xtreme |
MF22190 |
OEMXT 2.0 |
LROEMXT 2.0M X 2 |
MF22199 |
|
OEMXT 1.5 |
OEMXT 1.5M X 1CM xtreme |
CK22190 |
OEMXT 2.0 |
LROEMXT 2.0M X 2 CM |
CK22199 |
|
OEMXT 1.5 |
OEMXT 1.5M X 1CM-S xtreme |
CV22190 |
OEMXT 2.0 |
LROEMXT 2.0M X 2 CM-S |
CV22199 |
|
OEMXT 1.5 |
OEMXT 1.5M X 1RCM xtreme |
ME22190 |
OEMXT 2.0 |
LROEMXT 2.0M X 2 RCM |
ME22199 |
|
OEMXT 1.5 |
OEMXT 1.5M X 1RCM-S xtreme |
SR22190 |
OEMXT 2.0 |
LROEMXT 2.0M X 2 RCM-S |
SR22199 |
|
OEMXT 1.5 |
OEMXT 1.5M X 2 xtreme |
MF22191 |
OEMXT 2.0 |
OEMXT 2.0M X 2 xtreme |
MF22193 |
|
OEMXT 1.5 |
OEMXT 1.5M X 2CM xtreme |
CK22191 |
OEMXT 2.0 |
OEMXT 2.0M X 2CM xtreme |
CK22193 |
|
OEMXT 1.5 |
OEMXT 1.5M X 2CM-S xtreme |
CV22191 |
OEMXT 2.0 |
OEMXT 2.0M X 2CM-S xtreme |
CV22193 |
|
OEMXT 1.5 |
OEMXT 1.5M X 2RCM xtreme |
ME22191 |
OEMXT 2.0 |
OEMXT 2.0M X 2RCM xtreme |
ME22193 |
|
OEMXT 1.5 |
OEMXT 1.5M X 2RCM-S xtreme |
SR22191 |
OEMXT 2.0 |
OEMXT 2.0M X 2RCM-S xtreme |
SR22193 |
|
OEMXT 1.5 |
OEMXT 1.5M X 3 xtreme |
MF22192 |
OEMXT 2.0 |
OEMXT 2.0M X 4 xtreme |
MF22194 |
|
OEMXT 1.5 |
OEMXT 1.5M X 3CM xtreme |
CK22192 |
OEMXT 2.0 |
OEMXT 2.0M X 4CM xtreme |
CK22194 |
|
OEMXT 1.5 |
OEMXT 1.5M X 3CM-S xtreme |
CV22192 |
OEMXT 2.0 |
OEMXT 2.0M X 4CM-S xtreme |
CV22194 |
|
OEMXT 1.5 |
OEMXT 1.5M X 3RCM xtreme |
ME22192 |
OEMXT 2.0 |
OEMXT 2.0M X 4RCM xtreme |
ME22194 |
|
OEMXT 1.5 |
OEMXT 1.5M X 3RCM-S xtreme |
SR22192 |
OEMXT 2.0 |
OEMXT 2.0M X 4RCM-S xtreme |
SR22194 |
|
OEMXT 45 |
OEMXT 45M X 1 |
MF25799 |
OEMXT 2.0 |
LROEMXT 2.0M X 4, XTREME |
MF22650 |
|
OEMXT 45 |
OEMXT 45M X 2 |
MF25800 |
OEMXT 2.0 |
OEMXT 2.0M X 6 xtreme |
MF22195 |
|
OEMXT 45 |
OEMXT 45M X 3 |
MF25801 |
OEMXT 2.0 |
OEMXT 2.0M X 6CM xtreme |
CK22195 |
|
OEMXT 45 |
LROEMXT 45M X 1 |
MF25840 |
OEMXT 2.0 |
OEMXT 2.0M X 6CM-S xtreme |
CV22195 |
|
OEMXT 45 |
LROEMXT 45M X 2 |
MF25841 |
OEMXT 2.0 |
OEMXT 2.0M X 6RCM xtreme |
ME22195 |
|
OEMXT 45 |
LROEMXT 45M X 3 |
MF25842 |
OEMXT 2.0 |
OEMXT 2.0M X 6RCM-S xtreme |
SR22195 |
